Planning a Family Bathroom Around the Morning Rush

A shared family bathroom works when the toilet, the shower and the sink zone can be occupied by three different people at the same time. Compartmentalizing the toilet behind its own door, giving the vanity two stations and keeping the shower door clear of both are the three moves that turn a 7:15 a.m. bottleneck into a normal morning.

Square footage rarely fixes a family bathroom. A large single-room bathroom still serves one person at a time, while a smaller plan split into zones serves three. The question is not how big the room is. The question is how many simultaneous users it supports.

What makes a family bathroom fail in the morning?

A single-door bathroom serves one person, so the household queues for the slowest task. Showering runs 8 to 12 minutes, tooth brushing runs 2 minutes, and toilet use runs 3 to 5 minutes. Combining all three behind one lock means the 12 minute task blocks the 2 minute task, and four people need close to 40 minutes of sequence.

Splitting the room changes the arithmetic. When the toilet sits behind its own door and the vanity sits outside the wet zone, the same four people finish in roughly the length of the longest single task plus a few minutes of overlap.

How much space does a compartmentalized toilet need?

A separate toilet compartment needs 30 inches of clear width at minimum and 36 inches to feel usable, with 21 inches of clear floor in front of the bowl as a code floor and 30 inches as a comfortable target. A curbless shower removes the threshold on the wet side of the same room. Add a door that swings out or a pocket door, because an in-swinging door in a 30 inch compartment collides with knees.

Local codes vary, and the authority having jurisdiction sets the enforceable figure. The comfortable targets in that table come from how households actually move, and they cost inches rather than dollars at the framing stage.

A large bathroom still serves one person. A divided bathroom serves three.

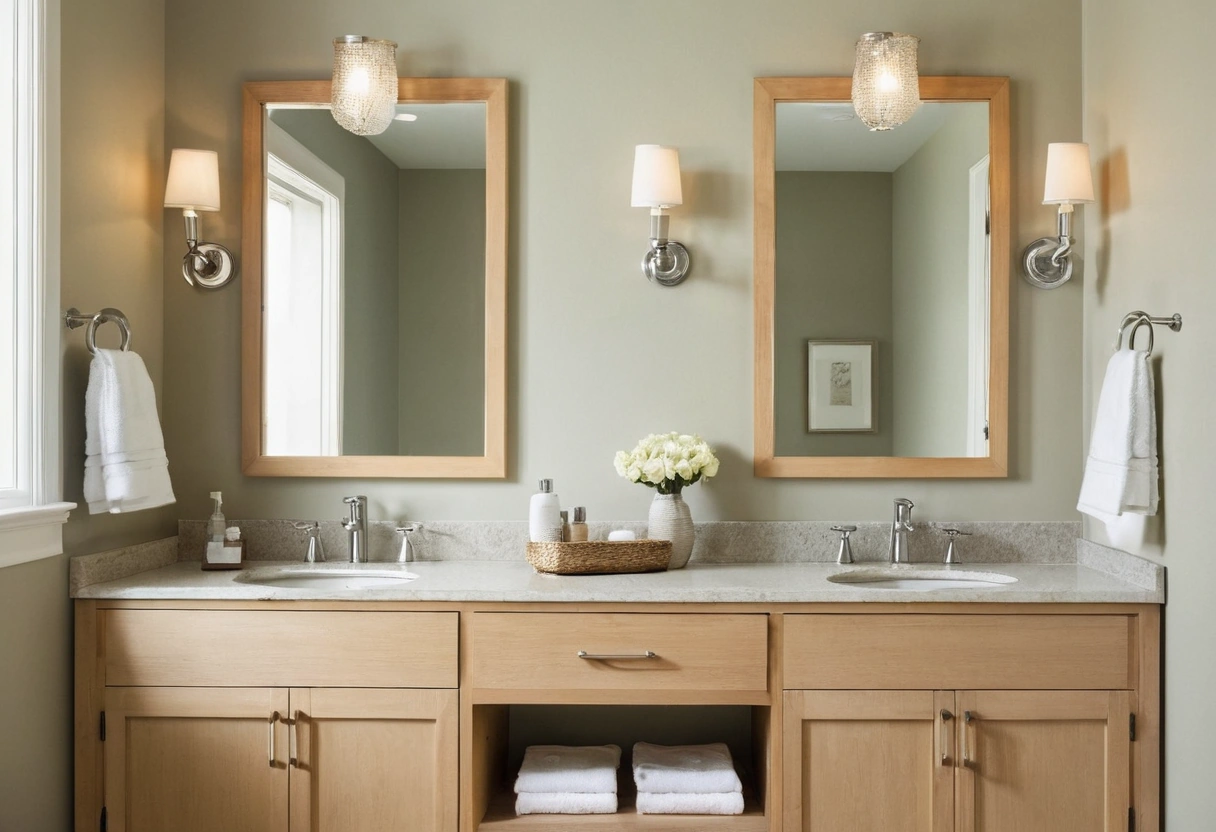

Do two sinks help more than one long counter?

Two sinks help when the counter is at least 60 inches wide, because two sinks in a 48 inch vanity leave no landing space between them. Below 60 inches, a single sink with a long counter serves a household better, since the bottleneck at a vanity is elbow room rather than basin count.

Set sink centers at least 30 inches apart, and 36 inches where two adults use the vanity at the same time. Keep at least 15 inches of counter beside each basin, because that is where the toothbrush, the contact case and the hair tie land.

Where should storage go in a shared bathroom?

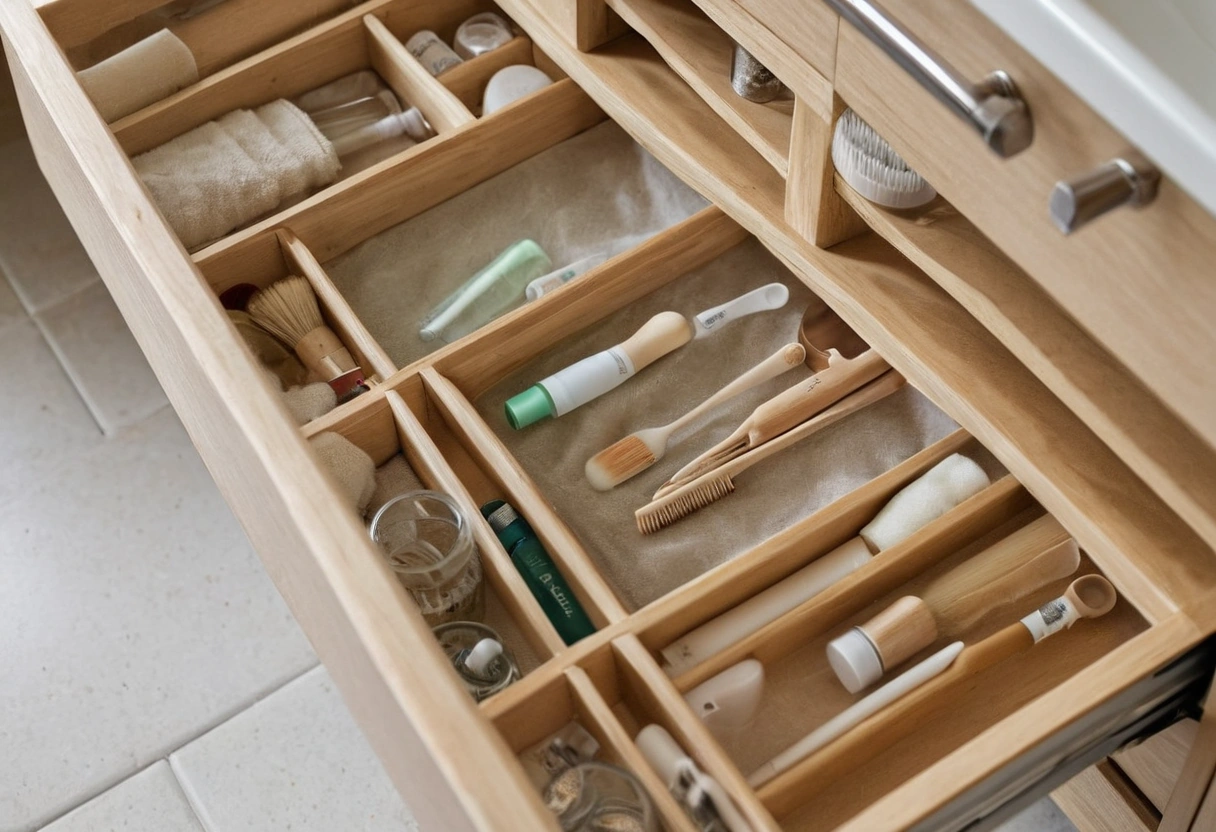

Give every user a dedicated container rather than a shared shelf. A family bathroom holds four toothbrushes, four sets of hair products and one first-aid kit, and shared shelving turns that into a search problem every morning. Drawers beat doors here, because a drawer shows its whole contents at once.

Three storage placements pay for themselves in a family bathroom:

• A drawer per person at the vanity, labeled or color-assigned for younger children.
• A recessed niche in the shower at 48 to 52 inches above the floor, sized for the tall bottles the household actually buys.
• A closed cabinet for towels outside the wet zone, since towels stored inside a steamy shower area never fully dry.

What about ventilation in a bathroom three people use back to back?

Size the exhaust fan at 1 CFM per square foot of floor area for bathrooms under 100 square feet, with 50 CFM as a practical floor. A bathroom running three consecutive showers needs the fan to keep running after the last one, which a timer switch or a humidity-sensing switch handles without anyone remembering.

Run the duct in insulated metal to an exterior wall or roof cap, never into an attic. Warm moist air condensing on cold attic framing is the origin of most bathroom mold problems that get blamed on the shower.

What to check before signing off a family bathroom plan

1. Draw three people in the room at once and confirm no two occupy the same clear floor space.
2. Swing every door on the plan, including the toilet compartment and the shower.
3. Confirm the vanity lighting does not sit directly behind whoever stands at the mirror.
4. Confirm the towel bar sits within reach of the shower opening without crossing the door swing.
5. Check that the fan switch sits by the door rather than behind the shower curtain.

Those five checks take twenty minutes on paper and they decide whether the household argues about the bathroom for the next decade.
